91E
The 91E is a newly developed integrated Class A, single-ended (SE) amplifier optimised to harness all the power WE300B tubes offer.
The 91E is a newly developed integrated Class A, single-ended (SE) amplifier optimised to harness all the power WE300B tubes offer.
The 91E is a newly developed integrated Class A, single-ended (SE) amplifier optimised to harness all the power WE300B tubes offer.
Trouble-free, noise-free, and double the power of traditional 300B amps. Made possible by patented circuit design.

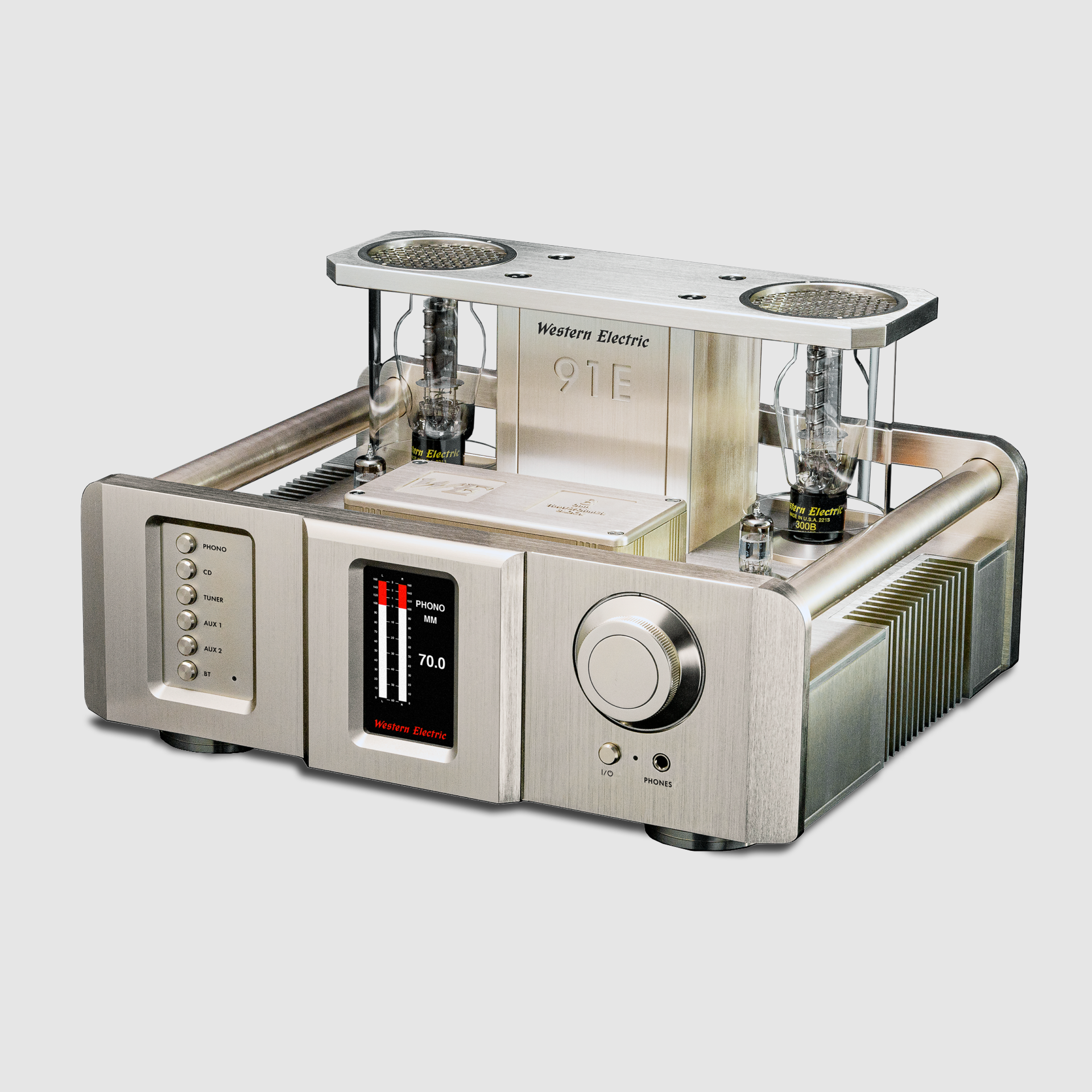

The Western Electric Type 91E is a Class A, single-ended (SE), integrated amplifier for high-fidelity audio reproduction.
The 91E was made for the Western Electric 300B to provide end users with the highest possible performance and quality.
Available in three (3) finishes: Nickel, Champagne, Black
In the box
91E Integrated Amplifier
Remote control
Pin-Straightener (9-pin)
2x 300B Electron Tubes (Power)
2x ECC81 Electron Tubes (Pre-amplifier, pre-installed)
8 Ω Output Transformer Block (pre-installed)
Power Cord
Spanner tool (for removal and/or replacement of 300B’s)
BT antenna
End User Guide
Steered Current Source Technology (SCS)
Experience double the traditional output power with advanced, single-ended (SE) circuit design. This new level of performance is reached by using a fully linear, steered current source (US Patent 10256776) controlled exclusively by the tube’s output voltage. The excess of common large output transformers and associated hysteresis is eliminated, and as a result, lush detail in the midrange and masterfully articulated upper and lower frequencies are revealed.
Stepped Logarithmic Attenuator
A stepped logarithmic attenuator is used to mimic the response of human hearing. The attenuator consists of only discrete resistors in a ladder configuration that are switched in and out of circuit to produce a logarithmic attenuation of the output signal.
Interchangeable Transformer Block
The standard 8-ohm transformer block can be interchanged with the optional 4-ohm or 16-ohm version. This feature is unique to the 91E Integrated Amplifier and allows users to match speaker impedance for improved fidelity. Single impedance transformers maintain lower winding capacitance normally vitiated with multiple tap transformers.
LCD Display
A bright and easy to read color display shows the selected input, attenuator level, and VU meter. The display also shows settings which can be adjusted by the included remote control. The display is dimmable.
Remote Control
The included infrared remote control allows for quick adjustment of amplifier settings such as input levels, balance, and display dimming.
Six Audio Inputs
Up to six (6) source devices can be connected during amplifier operation.
Auto-Bias
Microprocessors automatically bias the 300B tube pair each time the amplifier is powered on. No manual adjustment is necessary.
BT Compatibility
BT compatible audio input is available for wireless convenience.
Software and firmware Updates via Ethernet Connection and USB
Weight 49lbs / 22.2 kg
Dimensions 18.9 x 15 x 11.1” / 48 x 38 x 28cm
Chassis Machined Aluminum
Colors Nickel, Champagne, Black
Operating Voltage 100V / 115V / 230V / 50-60Hz
Power Consumption (Operation / Standby) 160W / 0.3W
Mains Fuse 2A slow-blow
Electron Tube Complement One Matched Pair Western Electric 300B, 2x ECC81
Phono MM Sensitivity (10W / 4Ω) 0.75mV
Phono MC Sensitivity (10W / 4Ω) 70μV
CD Sensitivity (10W / 4Ω) 0.27V
CD Input Impedance 20 kOhms
Phono MM Input Impedance 47 kOhms | | 100 pF
Phono MC Input Impedance 1000 kOhms (adjust via Phono Load plugs)
SNR MM (10W / 4Ω, input 5mV) 83 dB(A)
SNR MC (10W / 4Ω, input 0.5mV) 73 dB(A)
SNR CD (10W / 4Ω, input 0.5V) 101 dB(A)
CD Frequency Response 15 Hz - 32 kHz (-3 dB)
Phono Frequency Response 30 Hz - 20 kHz (RIAA within +/- 0.5 dB)
Output Power / 4 Ω / THD 10% 2 x 20 watts
Output Power / 4 Ω / THD 5% 2 x 16 watts
Output Power / 4 Ω / THD 3% 2 x 14 watts
Output Power / 8 Ω / THD 10% 2 x 20 watts
Output Power / 8 Ω / THD 5% 2 x 16 watts
Output Power / 8 Ω / THD 3% 2 x 14 watts
BT Standard v4.2
BT Codecs BC, MP3, AAC, Fastream, APTX
BT Sample Rate (adaptive) Up to 96kHz / 16-bit
BT frequency response 20 Hz - 20 kHz
BT SNR 96dB
